Mainstream Network System

AEWIN Technologies Co., Ltd.

SCB-1830

product_icon1
product_icon2
product_icon3
product_icon4
product_icon5

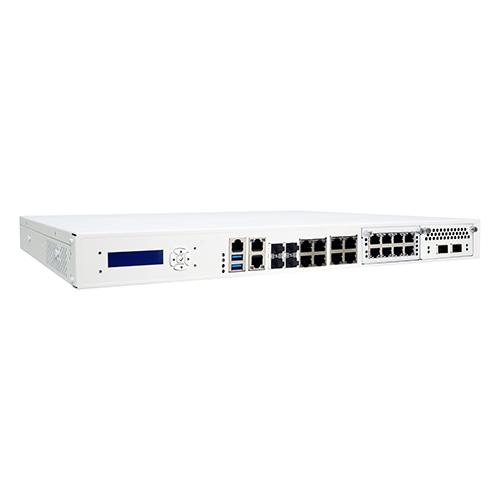

1U Rack-Mount Network Appliance, Intel Xeon D-2100 (Skylake-D) Series Processor, 4x DDR4, 2 PCIe x8 slots for Expansion Module , Console, 2x USB 3.0, 2x 1GbE RJ45 (Intel i210-AT), 8x 1GbE RJ45 (Intel i350-AM4), 4x 10GbE SFP+(Inphi CS4223), SATA HDD, mSATA, M.2, Mini PCIe

Overview
Specifications
Download
Options
Key features
  • Support Intel Xeon D-2100 (Skylake-D) processors
  • 4-channel DDR4 ECC/Registered 2400/2666MHz memory, up to 128GB
  • Support Intel® QAT (by SKU)
  • 10x RJ45 1GbE and 4x 10GbE SFP+ ports, support 2x NIC expansion modules
  • 1x riser card for PCIe x8 expansion slot to Rear
  • 2x 2.5” HDD/SSD, 1x mSATA
  • Support IPMI
Status : available

The SCB-1830 is a 1U rack-mounted hardware platform designed for network service applications. Built with Intel® Embedded IA components with warranty of longevity, the SCB-1830 support single Intel® 14nm Skylake-D Xeon D-2100 Series processors. The platform supports four un-buffered and non-ECC DDR4 2400/2666MHz DIMM sockets with max capacity up to 128 GB. In order to provide the best network performance and best utilization, the powerful storage interfaces include two 2.5" SATA HDD and one mSATA. The SCB-1830 also supports two PCIe x8 expansion slot and affords 2 GbE and max 30 GbE Ethernet ports on the front-panel. The front panel also has one USB 3.0 ports, one RJ-45 console port and LED indicators that monitor power and storage device activities for local system management, maintenance and diagnostics. In addition, the SCB-1830 is RoHS, FCC and CE compliant.

Specifications
Processor System
CPU
Intel Xeon D-2100 (Skylake) Series, FCBGA2518
Chipset
SOC Integrated
BIOS
AMI 64Mb SPI BIOS
Memory
Technology
4x channel, DDR4 2400/2666 MHZ ECC, un-buffered memory or none ECC UDIMM
Capacity
Up to 128GB
Expansion
Onboard Expansion Slots
4x PCI-E x8 slot for expansion NIC module
1x PCI-E x8 slot for standard PCI-E slot (Option)
Ethernet
GbE Ethernet
2x RJ45 GbE ports
Storage
SATA
2x 2.5” SATA HDD
CompactFlash / mSATA Socket
1x mSATA(*Reserve CF socket design, Option)
I/O
USB
2x external USB 3.0 port(*Front Side)
1x internal USB 3.0(*Rear Side)
Serial
1x RJ45 Console port (COM1)
Power Supply
Watt
1U Redundant 300W ATX Power Supply
Optional 1U Rear Mount Redundant 300W ATX Power Supply
Mechanical and Environment
Form Factor
1U rack-mount
LED
1x Power LED (Green)
1x HDD LED (Red)
2x Status LED (Green/Yellow via programmable GPIO)
Dimension (W x D x H)
440mm (W) x 450mm (D) x 44mm (H)
Operating Temperature
Operating: 0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature
-20 ~ 75°C (-4 ~ 167°F)
Humidity
10 ~ 85% relative humidity, non-operating,
non-condensing
Weight
10kg
Certification
CE/FCC
