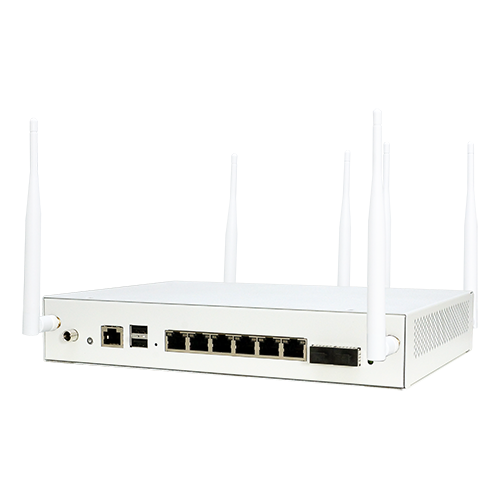

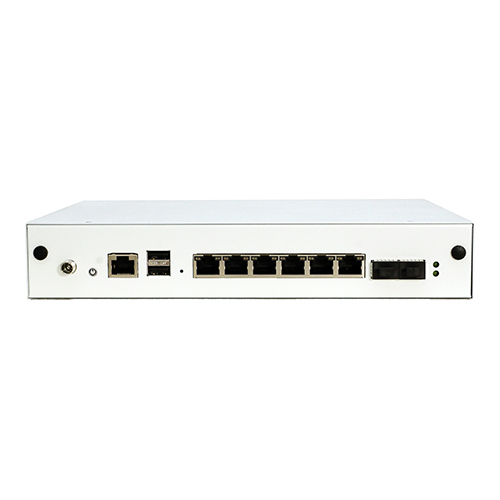

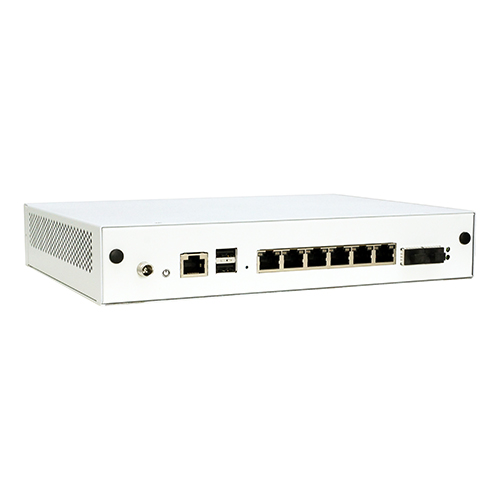

SCB-6990A

Intel Atom(Denverton-NS) C3338 fanless system for SD-WAN Network Appliance, 1 x DDR4 SO-DIMM up to 16GB, 6 x RJ45 GbE, 2 x SFP, 2 x M.2 B key for LTE/5G/WiFi module with 3x SIM cards

Overview
Specifications
Download
Optional
Key features
  • Intel® Atom(Denverton-NS) C3338 Processor, FCBGA1310
  • 1 x DDR4 SO-DIMM up to 16GB
  • 6 x RJ45 GbE, 2 x SFP
  • 2 x M.2 B key for LTE/5G/WiFi module with 3x SIM cards
  • on-board TPM (optional)
  • 8GB eMMC up to 64GB (optional)
Status : available

Intel Atom(Denverton-NS) C3338 fanless system for SD-WAN Network Appliance. SCB-6990 features a rugged fanless design suitable for industrial and unprepared locations, with specialized SKUs supporting wide-temperature deployments with processors up to 25w TDP. A multitude of connectivity options are supported; in addition to the standard 6x 1GbE RJ45 and 2x 1GbE SFP connectors, there are 1x slot for WIFI modules and 2x slots for cellular modules that can support the new WIFI6 standard and 4x 5G SIMs to offer maximum redundancy to your business network. AEWIN software engineers optimized the DPDK toolkit for the SCB-6990 to offer line-rate performance for 64B frame size in DPDK L3fwd testing. It offers packet forwarding performance suitable for network links with additional bandwith from multiple commodity network connections.

Specifications
Processor System
CPU
Intel® Atom (Denverton-NS) C3338 processors, FCBGA1310
BIOS
AMI® UEFI BIOS
Memory
Technology
1x DDR4 2400/2133/1866MHz Non-ECC SO-DIMM
Capacity
Max up to 16GB
Expansion
PCI-E slot
2x M.2 slots & 1x mPCIe slot
SIM
3x SIM card
Ethernet
GbE Ethernet
6x GbE & 2x SFP ports
LAN Bypass
1 pair
Storage
mSATA
1x mSATA
I/O
USB
2x USB2.0
Console
1x RJ45 console port
Antenna
6x antenna
Power Supply
Watt
60W/12V adapter
Mechanical and Environment
Form Factor
Desktop
LED
(Pinhead)
Dimension (W x D x H)
250mm x 180mm x 44mm
Operating Temperature
0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature
-20 ~ 75°C (-4 ~ 167°F)
Humidity
10 ~ 85% relative humidity, non-operating,
non-condensing
Weight
1kg
Certification
CE/FCC
